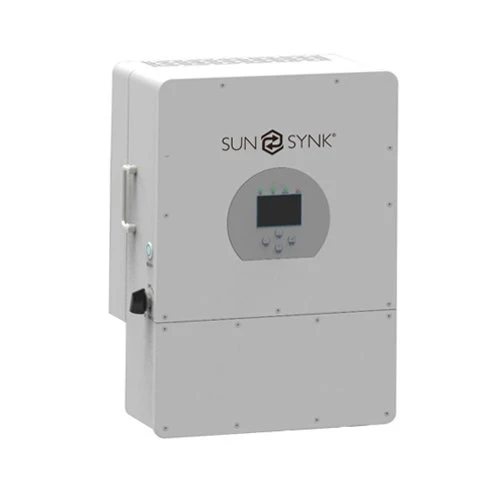

SUNSYNK HYBRID INVERTER

1. Weight: 34.5 kg
2. Rated Power: 16,000 W
3. Min PPT Voltage: 150 V
4. Max PPT Voltage: 450 VDC
5. Startup Voltage: 150 VDC
6. Shutdown Voltage: 150 V
7. Max Input Voltage: 450 V
8. Max DC Power: 18,000 W
9. Max AC Power: 16,000 W
10. Surge AC Power: 24,000 W
11. Max DC Current: 66 A
12. Max DC Inputs: 6
13. Euro Efficiency: 97 %
14. MPPT Quantity  3
15. Warranty: 5 years

Product Features

1. The largest single-phase hybrid Inverter on the market.
2. A total of 15 x inverters can be connected in a three-phase configuration (five units per phase) – giving a maximum power output of 240kW.
3. 3 x inverters can be connected in a single-phase configuration giving a total power of 48kW.
4. Contains 3 x MPPTs to allow for flexible PV array designs and improved efficiency.
5. Programmable multiple operation modes: on-grid/off-grid & UPS.
6. IP65 protection rating – suitable for most outdoor installations.
7. Wi-Fi dongle as standard – enabling remote monitoring via the Sunsynk cloud
8. Compatible with leading lithium battery brands such as Hubble Lithium, Pylontech LV and Freedomwon.
