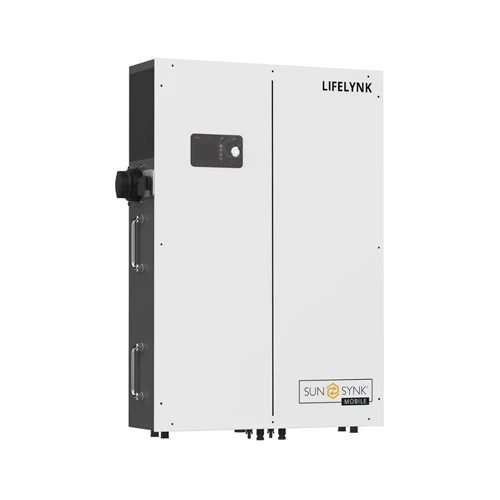

SUNSYNK POWERLYNK XL ALL-IN-ONE

1. Simple, Yet Elegant.
2. Introducing the Powerlynk XL by Sunsynk Mobile.
3. Masterfully crafted to simplify and speed up installation, allowing far more efficient planning and implementation of large volume roll outs in new house builds or retrofits.
4. Our dedicated Sunsynk Connect platform enables full control, visibility, and access to the system, making site-specific customization easy.
5. The Powerlynk comes complete with everything you need to install this cutting-edge storage solution. In-built connection points give access to the Load, Grid, CT, and Wi-Fi data logger ports, making it a true “plug and play” system.
6. From the Pre-Set factory settings to the In-Built connection ports, the Powerlynk has been designed with convenience and hassle free installation in mind.

INVERTER

1. MAX OUTPUT POWER: 5500W
2. MAX DC INPUT POWER: 6800W
3. MAX DC INPUT VOLTAGE: 500V
4. MPPT VOLTAGE RANGE: 120V – 450V
5. START UP VOLTAGE: 150V

BATTERY

1. BATTERY TYPE: LIFEPO4
2. NOMINAL VOLTAGE: 51.2V
3. INPUT VOLTAGE RANGE: 43.2V – 57.6V
4. MAX CHARGE VOLTAGE: 60V (CONFIGURABLE)
5. MAX CHARGE CURRENT: 90A (CONFIGURABLE)
6. MAX DISCHARGE CURRENT: 120A (CONFIGURABLE)
7. CAPACITY: 5223WH
